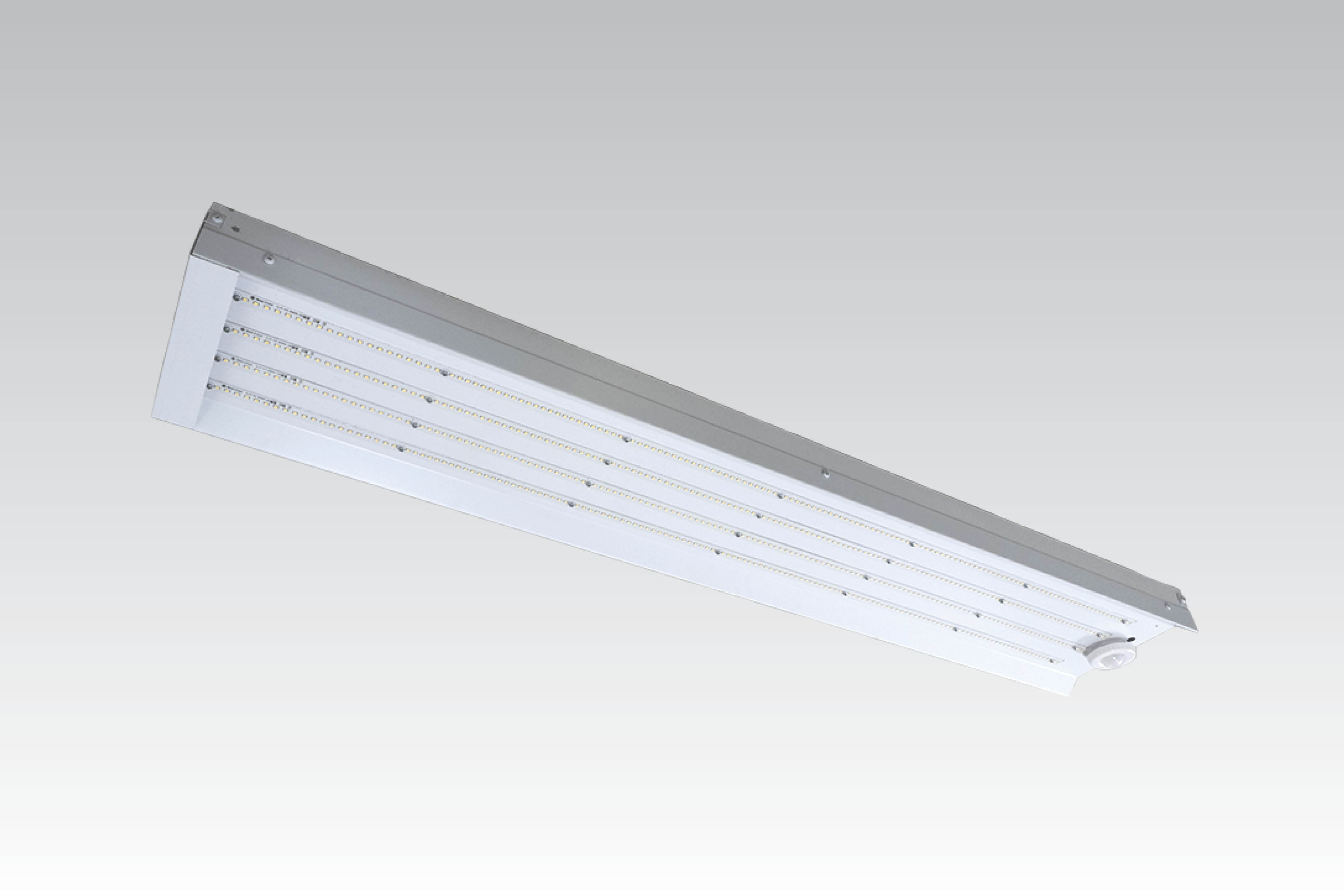

Aisle Lighter

The AISLE LED high bay delivers ultra-efficient LED performance with uniform vertical light distribution for improved aisle lighting in high rack warehouse or retail applications. Narrow channel design for ESFR configurations.

Filter Products
Lumen Range
Color Temperature
Mounting
Certifications
Features
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
To Product
  • All Aluminum Construction
  • Low-profile, lightweight design provides ease of installation
  • Surface Mount or Aircraft Cable Hanger Assembly
  • Tool-Less Access to Wire way
  • Boxed End Enclosures for added Rigidity
  • Floating Reflector Design Provides 60⁰—120⁰ Distribution
  • Suitable for Damp Location
  • UL Listed

LED SYSTEM: Illumadyne has elected to use the latest 5630 mid-power LED’s from Samsung, achieving efficiencies of 175-200 Lumens/Watt. We configure our linear LED Boards for the optimum in efficiency and thermal management through the use of all Aluminum PCB’s. When combined with the latest high efficiency drivers and our LED Modules, Illumadyne is able to achieve over 140 Lumens/Watt for system efficacy (Including Driver Loss), while providing a modular concept for scalability. All drivers are equipped with short circuit, lightning and over temp protection.

OPTICAL SYSTEM: Through the use of our novel “Floating” Specular Reflector design, Illumadyne can effectively manipulate the distribution pattern of our fixtures without the high cost of optical lenses. Available with a clear Acrylic or Tempered Glass Lens to limit dirt depreciation.

  • > 140LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with Dimming Driver
  • Integral PIR & Microwave Sensor Available
  • Lifetime - L80 > 100,000 HRS
  • Limited 7-Year Warranty
  • Designed to operate in Temperatures –25°C - 50°C

4AL
40,000+
4AL
4AL
|
4' & 8' Aisle Lighter

Narrow Channel High Bay

300
watts
48000
lumens
178.9
LPW
