Enclosed & Gasketed

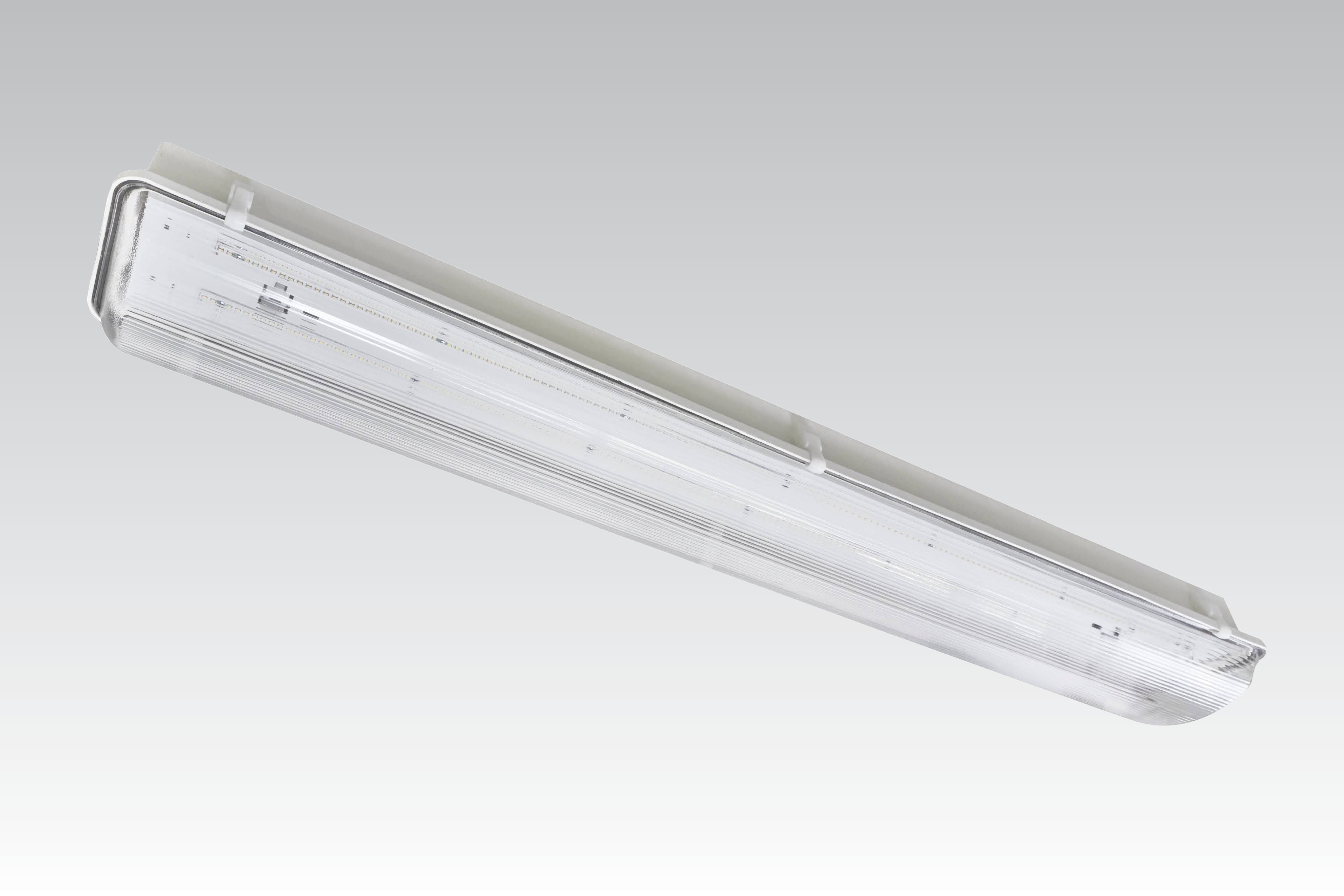

A general purpose energy-efficient LED luminaire suitable for wet, damp and/or cold locations. For demanding applications where moisture or dust is a concern. Can be surface-mounted or suspended.

Filter Products
Lumen Range
Color Temperature
Mounting
Certifications
Features
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
To Product
  • Rigid one piecehousing
  • Continuous poured gasket for superior performance
  • LED Module traysuspends from body with security straps
  • Suitable for Dampand Wet Location
  • ETL Listed

LEDSYSTEM: Illumadyne has elected to use the latest 3030 and 2835 mid-powerLED’s from Seoul Semiconductor, achieving efficiencies of 150 LPW. We configure our linear LED Boards for the optimum efficiency and thermal management throughthe use of all Aluminum PCB’s. When combined with the latest high efficiencydrivers and our LED Modules, Illumadyne is able to achieve over 140 Lumens/Wattfor system efficacy (Including Driver Loss), while providing a modular conceptfor scalability. All drivers are equipped with short circuit and over tempprotection.

  • > 150LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with Dimming Driver
  • Integral Microwave Sensor Available
  • Lifetime - Designed to last up to 100,000 HRS
  • Limited 7-Year Warranty

24VTX
20,001 - 30,000
24VTX
24VTX
|

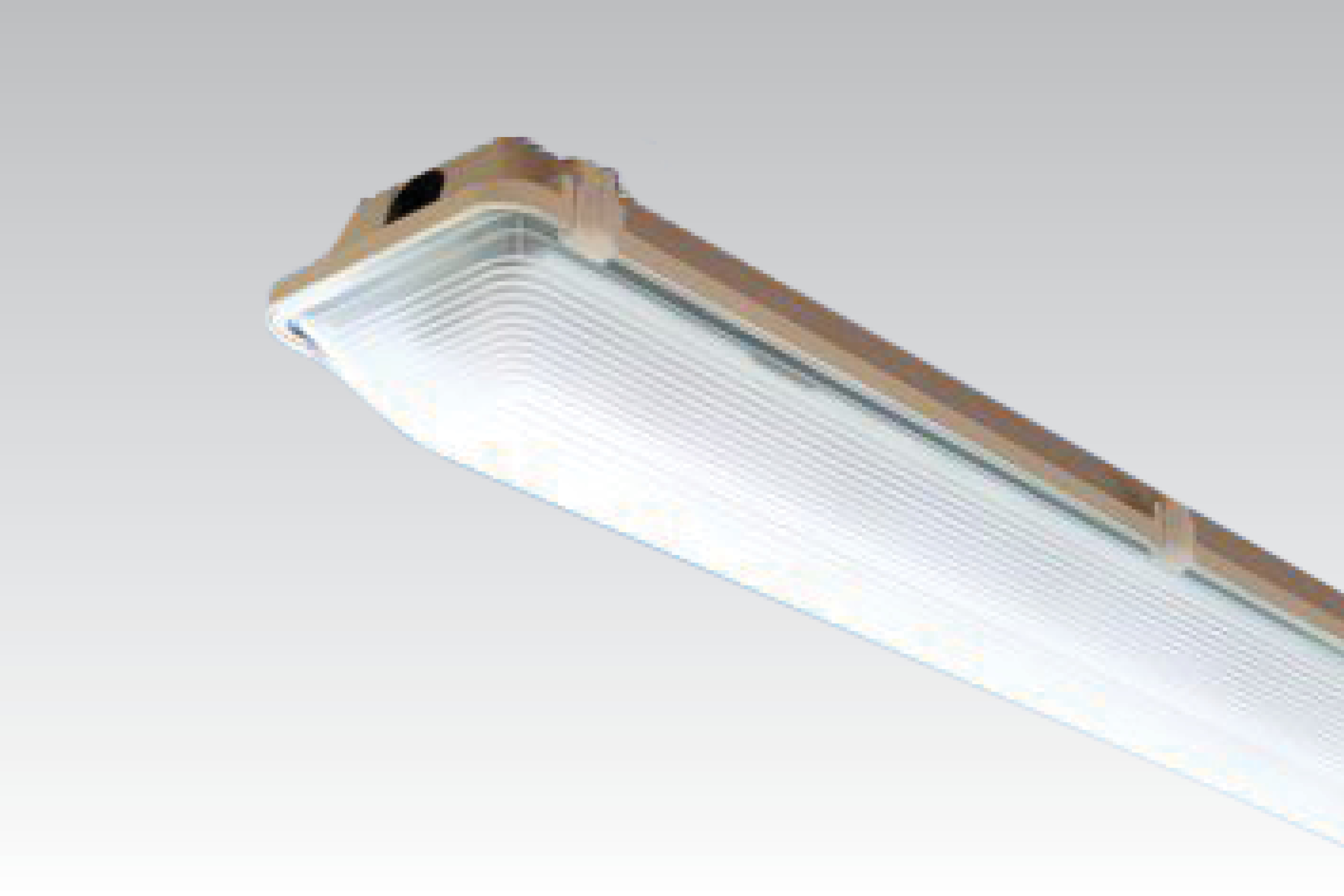

LED Vaportight 24VTX

Rigid LED fixture suitable for extreme conditions

200
watts
30000
lumens
150.0
LPW
To Product
  • Rigid one piecehousing
  • Continuous pouredgasket for superior performance
  • LED Module traysuspends from body with security straps
  • Suitable for Dampand Wet Location
  • ETL Listed

LED SYSTEM: Illumadyne has elected to use the latest 3030 and 2835 mid-power LED’s from Seoul Semiconductor, achieving efficiencies of 200 LPW. We configure our linear LED Boards for the optimum efficiency and thermal management through the use of all Aluminum PCB’s. When combined with the latest high efficiency drivers and our LED Modules, Illumadyne is able to achieve over 140 Lumens/Wattfor system efficacy (Including Driver Loss), while providing a modular conceptfor scalability. All drivers are equipped with short circuit and over tempprotection.

  • > 140LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with Dimming Driver
  • Integral Microwave Sensor Available
  • Lifetime - Designed to last up to 100,000 HRS
  • Limited 7-Year Warranty

VTX
10,001 - 20,000
VTX
VTX
|
LED Vaportight X

Rigid LED fixture suitable for extreme conditions.

90
watts
13000
lumens
145.0
LPW
To Product
  • Rigid one piece housing
  • Continuous poured gasket for superior performance
  • LED Module tray suspends from body with security straps
  • Suitable for Damp and Wet Location
  • ETL Listed

LED SYSTEM: Illumadyne has elected to use the latest 3030 and 2835 mid-power LED’s from Seoul Semiconductor, achieving efficiencies of 200 LPW. We configure our linear LED Boards for the optimum efficiency and thermal management through the use of all Aluminum PCB’s. When combined with the latest high efficiency drivers and our LED Modules, Illumadyne is able to achieve over 140 Lumens/Watt for system efficacy (Including Driver Loss), while providing a modular concept for scalability. All drivers are equipped with short circuit and over temp protection.

  • > 140LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with Dimming Driver
  • Integral Microwave Sensor Available
  • Lifetime - Designed to last up to 100,000 HRS
  • Limited 7-Year Warranty
4VT
5,001 - 10,000
4VT
4VT
|

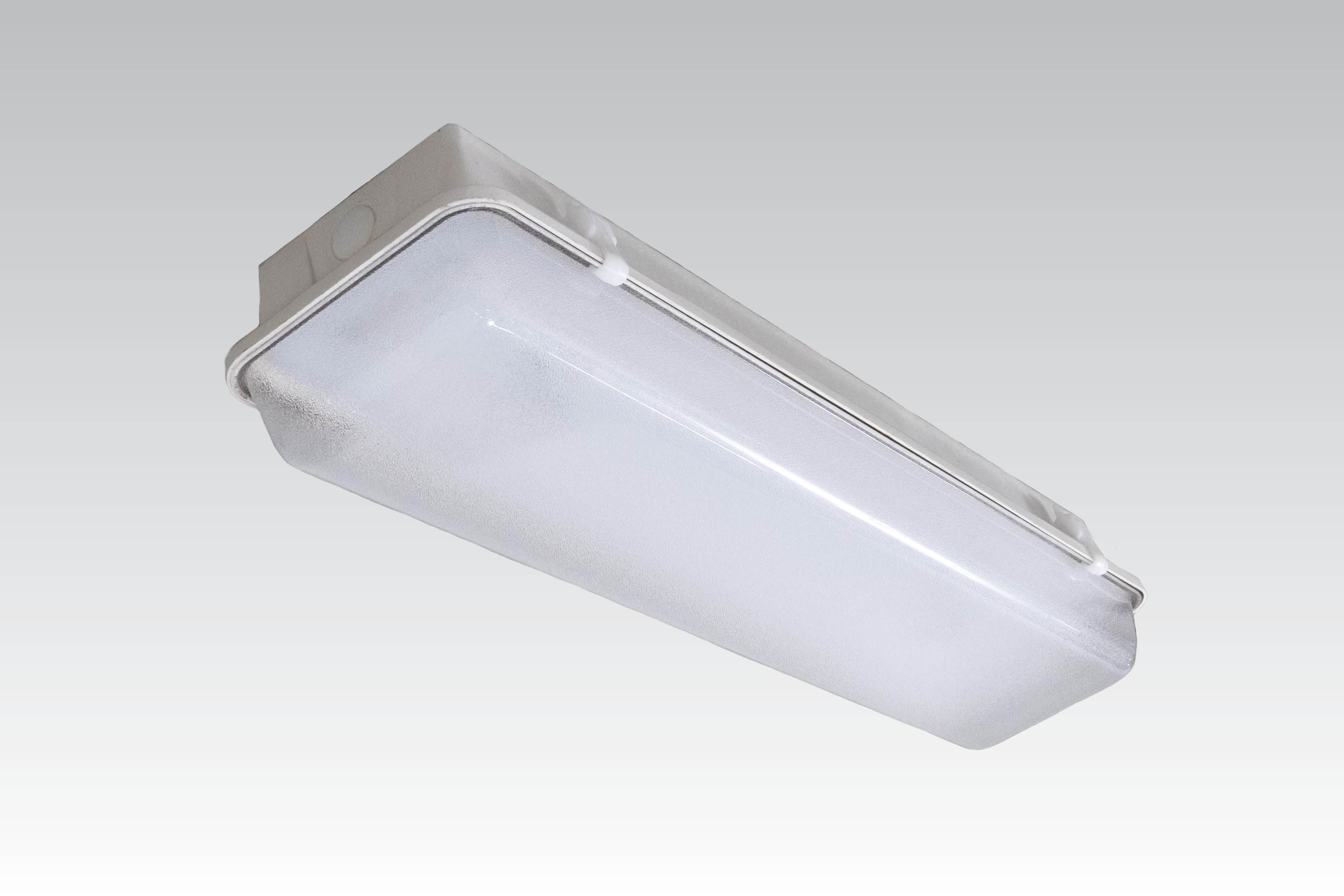

4' Narrow Enclosed & Gasketed

General Purpose Vapor-tight

60
watts
8000
lumens
133.0
LPW
To Product
  • Rigid one piece housing
  • Continuous poured gasket for superior performance
  • LED Module tray suspends from body with security straps
  • Suitable for Damp and Wet Location
  • ETL & DLC Listed

LED SYSTEM: Illumadyne has elected to use the latest 3030 and 2835 mid-power LED’s from Samsung, achieving efficiencies of up to 200 LPW. We configure our linear LED Boards for the optimum efficiency and thermal management through the use of all Aluminum PCB’s. When combined with the latest high efficiency drivers and our LED Modules, Illumadyne is able to achieve over 140 Lumens/Watt for system efficacy (Including Driver Loss), while providing a modular concept for scalability. All drivers are equipped with short circuit and over temp protection.

  • > 140LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with 0-10v Dimming Driver
  • Integral PIR or Microwave Sensor Available
  • Lifetime - Designed to last up to 100,000 HRS
  • Limited 7-Year Warranty
2VT
500 - 5,000
2VT
2VT
|
2' Narrow Enclosed & Gasketed

General Purpose Vapor-tight

30
watts
4500
lumens
150.0
LPW
