Recessed Continuous Row Strip Retrofits

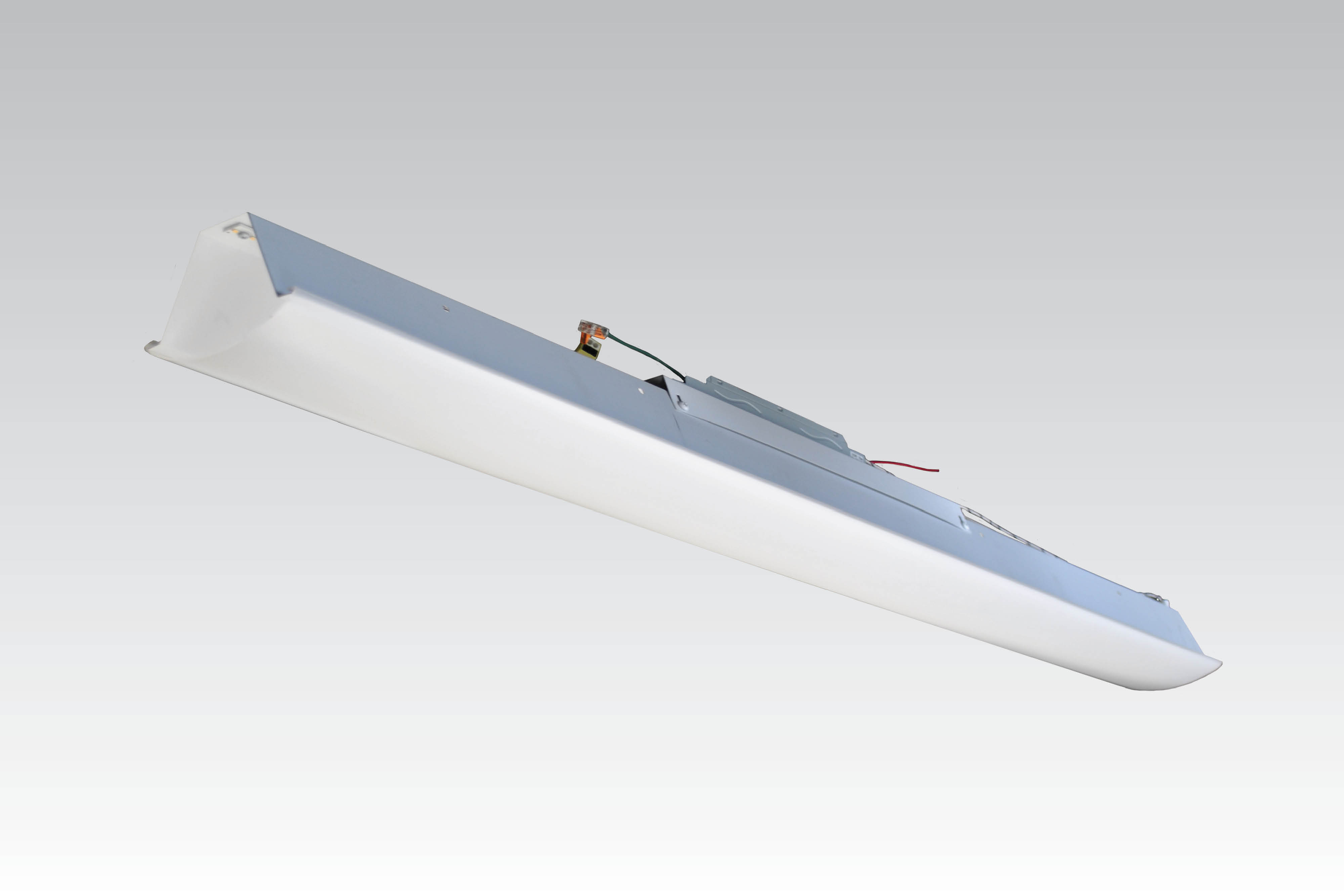

‍RETROFIT KIT DESIGN: The CRRS retrofit kit series is designed to upgrade the Lithonia Recessed Strip Fixture Model # CRRS. The retrofit kit is a novel approach which seamlessly integrates the new LED components and existing body and provides a very clean and modern appearance. The kit comes from the factory completely pre-wired and with associated brackets, clips and lanyards for a near tool-less installation.

LED SYSTEM: Illumadyne has elected to use the latest 2835 and 3030 mid-power LED’s from Samsung Semiconductor, achieving efficiencies of up to 200 Lumens/Watt. We configure our linear LED Boards for the optimum in efficiency and thermal management through the use of all Aluminum PCB’s. Illumadyne is able to achieve over 150 Lumens/Watt for system efficacy (Including Driver Loss). All drivers are equipped with short circuit, lightning, over temp protection and minimum 16kV surge protection.

• Reflector Kit Quickly and Easily Installs Into Existing
• Lithonia CRRS Recessed Strip Style Fixture
• All Aluminum Construction
• Custom Compression Fit Diffuse Lens
• Samsung Semiconductor High Efficiency LED’s
• 80 CRI, 90 CRI Availability
• Available with On-Board Dimming Controls
• L70> 110,000 HRS
• Limited 7-Year Warranty
