Strips

A versatile, ultra-efficient LED strip lighting solution that can meet the challenges of your industrial, retail, warehousing and task lighting applications. Engineered to deliver long life and dependable light output. Multiple lengths, lenses and mounting options to meet the needs of your application.

Filter Products
Lumen Range
Color Temperature
Mounting
Certifications
Features
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
To Product
  • All Aluminum Construction
  • Low-profile, lightweight design provides ease of installation
  • Surface Mount or Aircraft Cable Hanger Assembly
  • Boxed End Enclosures for added Rigidity
  • Suitable for Damp Location
  • ETL Listed

LED SYSTEM: Illumadyne has elected to use the latest 3030 and 2835 mid-power LED’s from Seoul Semiconductor, achieving efficiencies of 200 LPW. We configure our linear LED Boards for the optimum in efficiency and thermal management through the use of all Aluminum PCB’s. When combined with the latest high efficiency drivers and our LED Modules, Illumadyne is able to achieve over 160 Lumens/ Watt for system efficacy (Including Driver Loss), while providing a modular concept for scalability. All drivers are equipped with short circuit and over temp protection.

  • > 160LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with Dimming Driver
  • Integral PIR & Microwave Sensor Available
  • Lifetime - L70 >100,000 Hrs
  • Limited 7-Year Warranty
8ST
10,001 - 20,000
8ST
8ST
|
8' Strip 4 LED boards (with no lens)

High performance LEDs in an classic fixture style

80
watts
12000
lumens
150.0
LPW
To Product

LED SYSTEM: Illumadyne has elected to use the latest 3030 and 2835 mid-power LED’s from Seoul Semiconductor, achieving efficiencies of 200 LPW. We configure our linear LED Boards for the optimum in efficiency and thermal management through the use of all Aluminum PCB’s. When combined with the latest high efficiency drivers and our LED Modules, Illumadyne is able to achieve over 160 Lumens/ Watt for system efficacy (Including Driver Loss), while providing a modular concept for scalability. All drivers are equipped with short circuit and over temp protection.

  • > 160LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with Dimming Driver
  • Integral PIR & Microwave Sensor Available
  • Lifetime - L70 >100,000 Hrs
  • Limited 7-Year Warranty
4STL
5,001 - 10,000
4STL
4STL
|

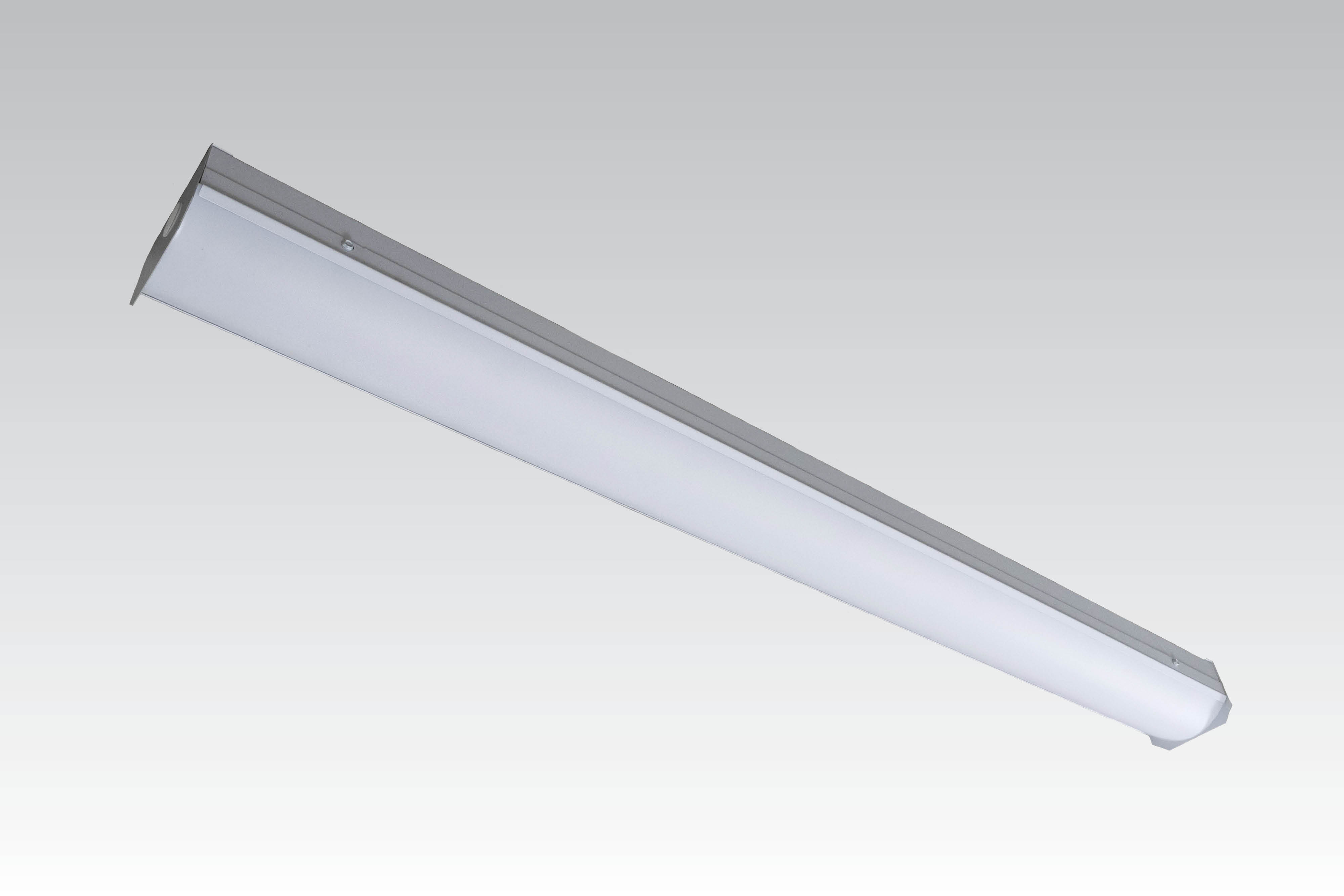

4' Strip 1 LED board (with diffuse lens)

High performance LEDs in an classic fixture style

40
watts
6400
lumens
160.0
LPW
To Product
  • All Aluminum Construction
  • Low-profile, lightweight design provides ease of installation
  • Surface Mount or Aircraft Cable Hanger Assembly
  • Boxed End Enclosures for added Rigidity
  • Suitable for Damp Location
  • ETL Listed

LED SYSTEM: Illumadyne has elected to use the latest 3030 and 2835 mid-power LED’s from Seoul Semiconductor, achieving efficiencies of 200 LPW. We configure our linear LED Boards for the optimum in efficiency and thermal management through the use of all Aluminum PCB’s. When combined with the latest high efficiency drivers and our LED Modules, Illumadyne is able to achieve over 160 Lumens/ Watt for system efficacy (Including Driver Loss), while providing a modular concept for scalability. All drivers are equipped with short circuit and over temp protection.

  • > 160LPW
  • > 80 CRI
  • Mid Power LED’s Reduce Glare and Improve Visual Comfort
  • Standard with Dimming Driver
  • Integral PIR & Microwave Sensor Available
  • Lifetime - L70 >100,000 Hrs
  • Limited 7-Year Warranty
4ST
500 - 5,000
4ST
4ST
|
4' Strip 1 LED board (no lens)

High performance LEDs in an classic fixture style

30
watts
4500
lumens
150.0
LPW
